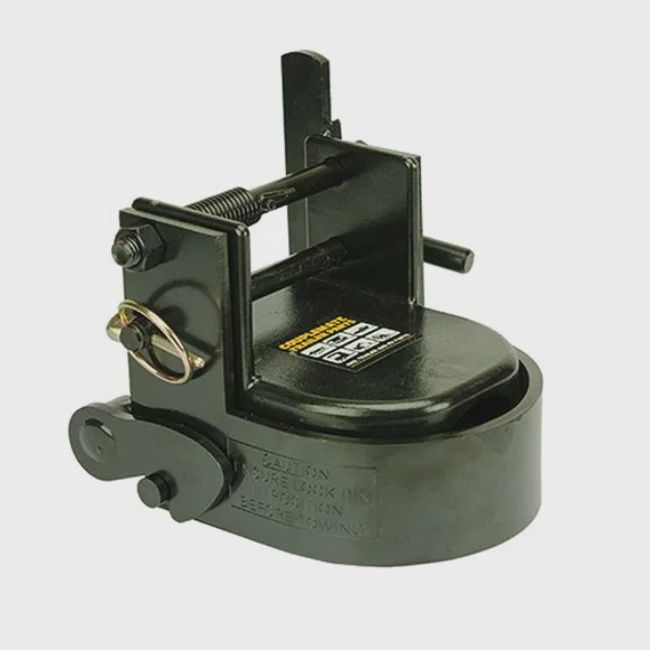

10T Gooseneck AutoLock Coupling

10t Gooseneck Autolock Coupling to suit trailers or Motorhomes – A.D.R. Approved. Rustproofing ElectroGal for longer life.

The Couplemate Autolock coupling D-Value and V-Value is the largest of any competitive product in Australia.

Our 10t Gooseneck Auto-Lock Coupling is coated with a chrome Black ElectroGal® for longer life and improved aesthetics.

Connection Tow Ball to Coupling

• Open the coupling shroud until it is in the backward position.
• Open the jaws fully to accept the tow ball.
• You will need assistance when slowly reversing into the tow ball on the vehicle into the coupling housing.
• The jaw will auto-lock when in position.
• Close the shroud to complete the hookup.

Jaws and shroud damage can occur during off-centre reversal in the coupling head. Two-person hookups are recommended.

Replacement parts can now be purchased should damage occur when the above procedure is not followed.

Product Specifications

• SKU: CM520
• CTA: 047029
• D.O.T. and ADR APPROVED
• D-Value 58kN
• V-Value 40kN (heavy-duty)
• Tested and Rated to 10,000kg

S-Value or the static vertical ‘Coupling’ load (kN) = 9.81 x S where:  S = ‘A.T.M.’ – ‘G.T.M.’ (tonnes).
