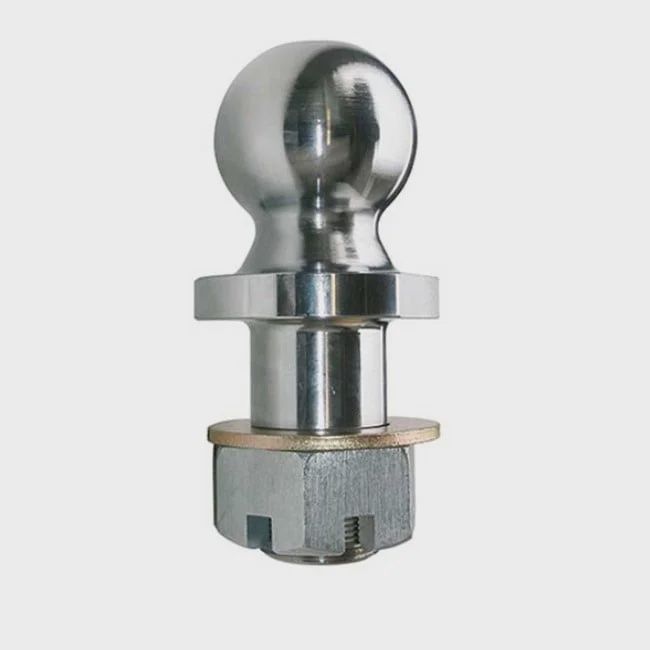

3" Tow Ball

The Couplemate 3-inch ball is engineered and manufactured to suit Australian style gooseneck couplings (10,000kg maximum ATM).

10T x 3″ Tow Ball. 2-inch Shank Diameter rated to 10,000kg. This product is not pre-drilled but does come with a split pin.

• ADR Approved
• CTA 047277
• D-Value 58kN
• V-Value 40kN

10T x 3" Tow Ball suit 10T Gooseneck or Fifth Wheel Couplings. Made in Australia.

3″ Tow Ball tested in Australia to ADR62/2.

This ball can be used in a 40mm tow bar mount position.

Nominal Shank Specifications

• Diameter: 50mm
• Length: 87mm
• Thread Length: 48mm
• Thread Type: 1-3/4″ UNF
• Threads per Inch: 12
