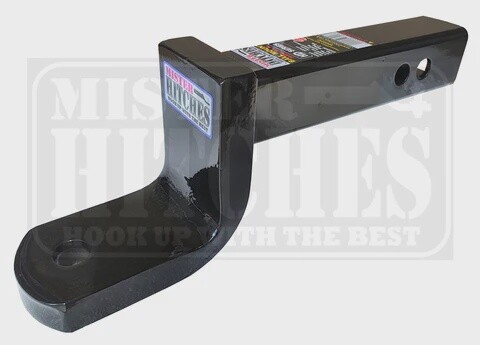

4" Drop (102mm) Ball Mount 3650kg

• REVERSIBLE - RAISES OR LOWERS BALL TO THE RIGHT LEVEL FOR TOWING
• BLACK POWDER COATED FINISH
• ROBOTIC WELDED FOR CONSISTENT QUALITY
• CNC MACHINED FOR MAXIMUM ACCURACY
• 2 PIN HOLES FOR GREATER ADJUSTMENT
• FITS 2" X 2" TOWBAR RECEIVERS
• EXTRA HEAVY DUTY 25MM THICK X 75MM WIDE BALL PLATFORM

GROSS TRAILER WEIGHT: 3650KG

TONGUE WEIGHT: 365KG

BALL HOLE SIZE: 7/8"

DROP: 102MM

RISE: 76MM

LENGTHS: 255MM & 280MM (MEASURED FROM CENTRE OF PIN HOLES TO CENTRE OF BALL HOLE)

END OF SHANK TO FIRST PIN HOLE IS 50MM (SUITS SHORT SHANK RECEIVERS EG. FORD RANGER)
