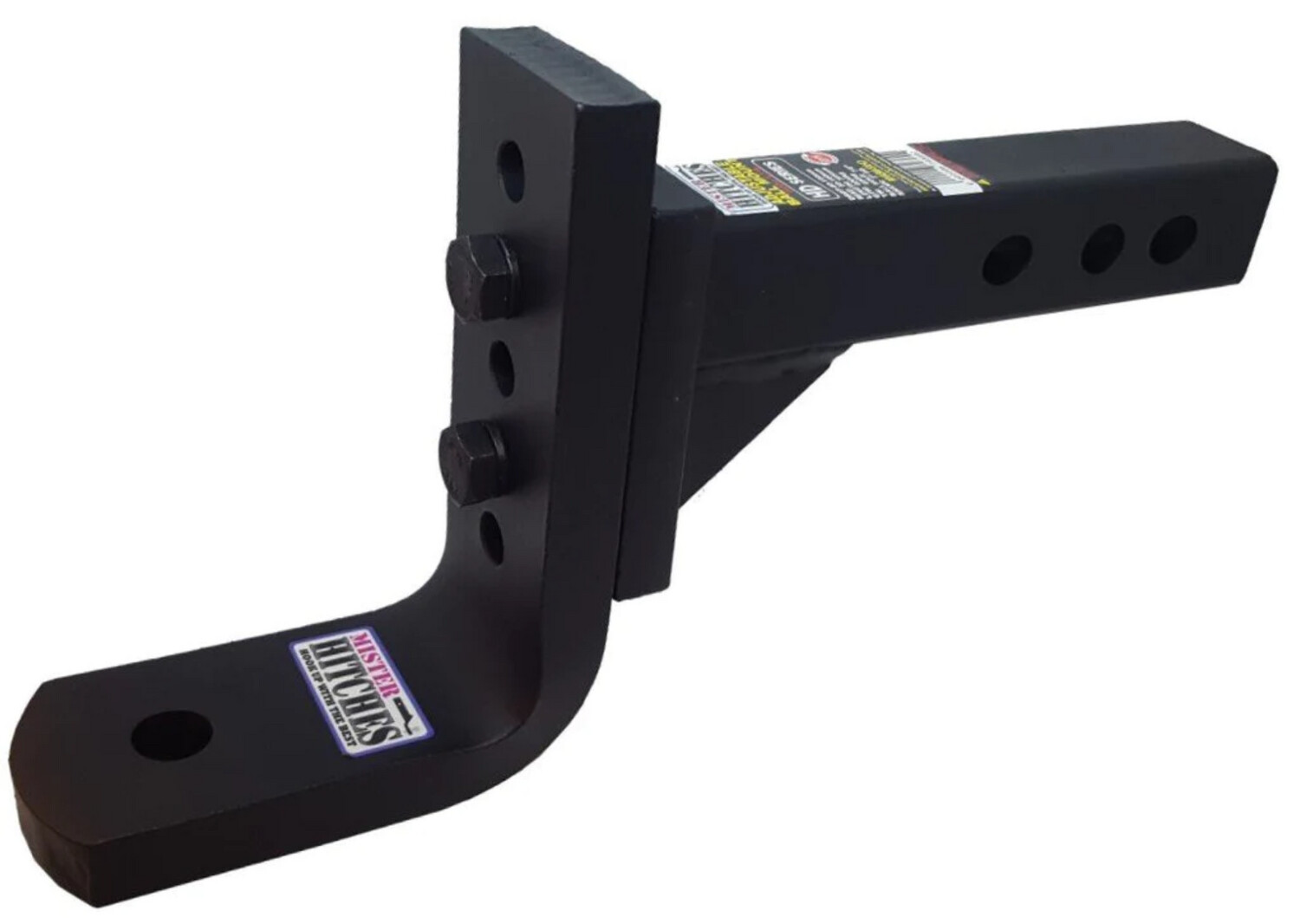

4000kg Adjustable Ball Mount

• Adjustable & reversible - 12 stages
• 6 stages of drop
  • 80mm / 110mm / 130mm / 140mm / 160mm / 190mm
• 6 stages of rise
  • 50mm / 80mm / 105mm / 110mm / 135mm / 165mm
• 10mm dual support gussets for added strength
• New model with 3 pin holes (ranger short shank compatible)
• Uses 12.9 grade high tensile 16mm bolts
• 25mm x 75mm heavy duty ball platform
• Matt black seaguard finish
• Robotic welded for consistent quality
• CNC machined for maximum accuracy
• Fits 2" x 2" towbar receivers
• Suits stone stomper and most couplings

Load Rating: 4000kg

Ball Weight: 400kg

Length: 266mm / 305mm / 331mm (measured from centre of pin hole to centre of ball hole)

End of shank to gusset: 164mm

Measurements are approximate
