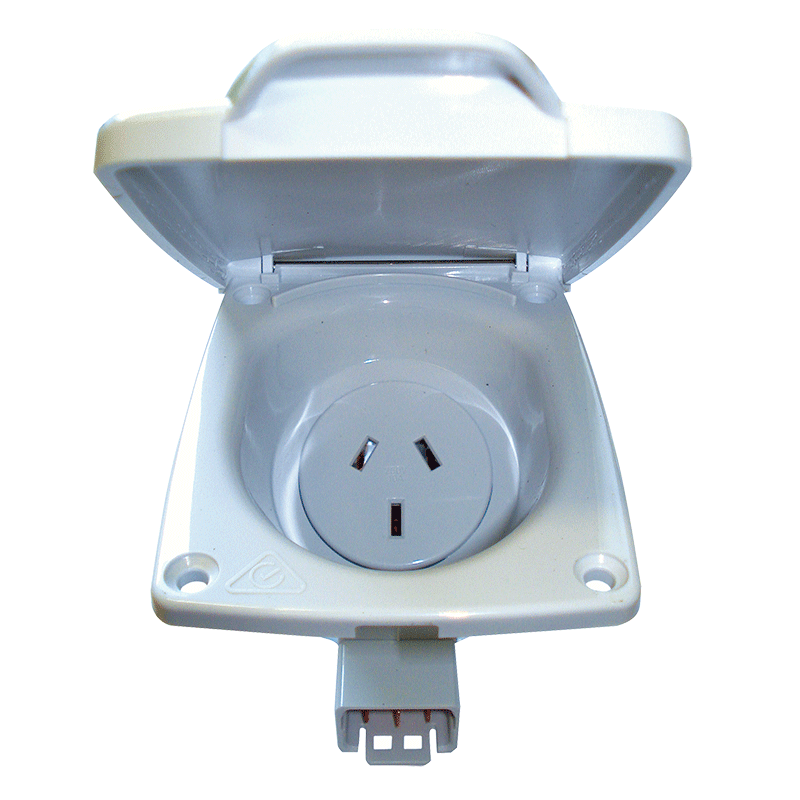

CMS Power Outlet

DIY 240v, 10amp, power outlet with auto switch, CMS.

CMS products provide a DIY 240V wiring solution for your RV. The 10amp power outlet fits the DIY 240V CMS cables.

This would typically be the last outlet in a circuit as it does not provide a second connection at the rear. It incorporates an automatic switch that will cut-off current (double poles) when an appliance is removed from the socket.

The screw holes are 65mm apart horizontally and 81mm apart vertically. You require 60mm from the outside mounting face to the rear of the inlet to accommodate it fully within a wall. For thinner walls it will extend into the cabin, or needs a homemade backing plated added to the outside. Backing plates are not available for this item.
